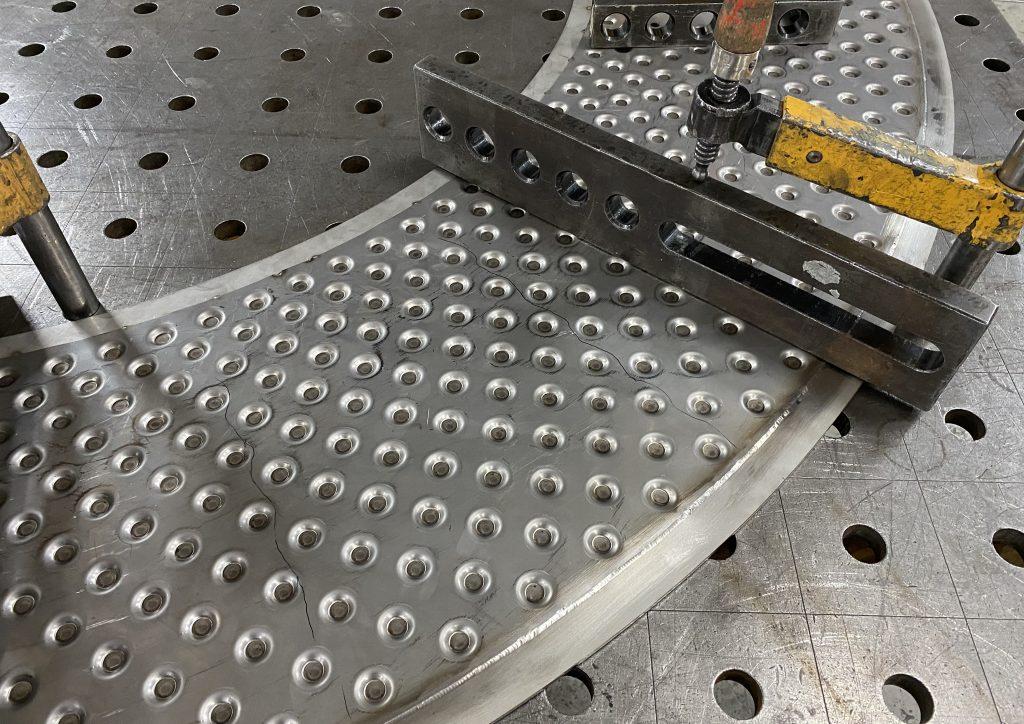

Absolut System designs cryogenic panels and thermal envelopes for equipment, instrument and satellite test systems.
Absolut System designs cryogenic panels and thermal envelopes for equipment, instrument and satellite test systems.
Design and validation of cryogenic shrouds surrounding all mechanical structures (thermal, radiative, thermohydraulic, mechanical)
The equipment’s internal thermal control system (conductive, radiative, convective with fluid-structure coupling, etc.). This includes the definition of internal dissipations such as cables modeled with 1D Sinda and FEM coupling.
Definition of thermal control components (MLI insulation, cooling circuits, heaters, control loops, etc.)
Design and validation of cryogenic shrouds surrounding all mechanical structures (thermal, radiative, thermohydraulic, mechanical)
The equipment’s internal thermal control system (conductive, radiative, convective with fluid-structure coupling, etc.). This includes the definition of internal dissipations such as cables modeled with 1D Sinda and FEM coupling.
Definition of thermal control components (MLI insulation, cooling circuits, heaters, control loops, etc.)
Design and validation of cryogenic shrouds surrounding all mechanical structures (thermal, radiative, thermohydraulic, mechanical)
The equipment’s internal thermal control system (conductive, radiative, convective with fluid-structure coupling, etc.). This includes the definition of internal dissipations such as cables modeled with 1D Sinda and FEM coupling.
Definition of thermal control components (MLI insulation, cooling circuits, heaters, control loops, etc.)
Absolut System is a company with recognized expertise in the implementation of radiative and thermal screens for the space industry.
As part of a project for the ESA and in partnership with APCO, Absolut System designed and justified the thermal control system for the New Motion System – NMS.
The NMS is being developed to enhance one of Europe’s largest vacuum chambers, the Large Space Simulator at ESA / ESTEC Test Center. The NMS consists of two arms covered with cryogenic shrouds in which liquid nitrogen (80K, 12 bars under refrigeration) circulates.
The NMS is articulated on 3 axes, enabling large payloads to be handled and positioned in front of the solar flux during thermal environment testing.
Absolut System has developed a compact rotary joint (RNJ Rotary Nitrogen Joint) to deliver and restore nitrogen during continuous rotations. It represents one of the key technologies and unique innovations of the NMS design for ESA’s LSS.
