    hfptc_pulse-tube

    Absolut System has developed a miniaturized high-frequency Pulse-Tube for space and terrestrial applications between 75K and 150K.

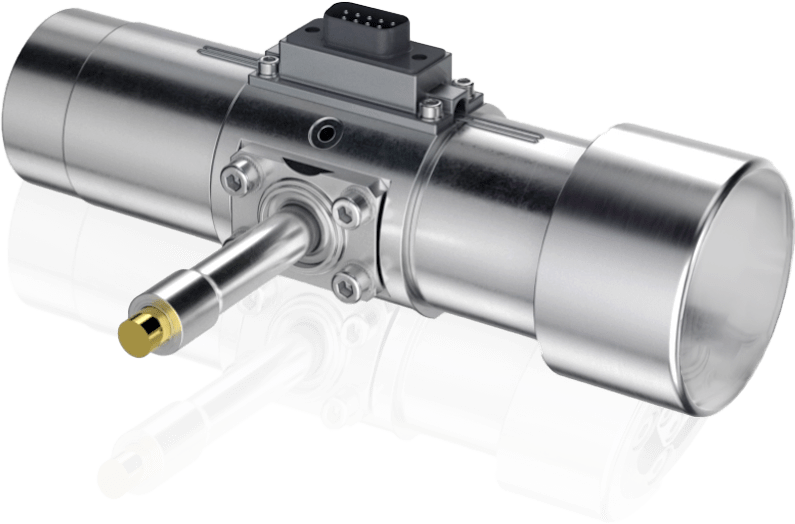

    The HFPTC is a high-frequency Pulse-Tube based on our expertise in cryogenic cooler design for the space industry. Our engineering teams have developed a cooler with reduced dimensions and high performance. The HFPTC combines a Thalès Cryogenics B.V compressor with a cold finger developed by Absolut System.

    Unique on the market, this high-frequency Pulse-Tube is reliable and has a service life in excess of 10 years.

    hfptc_pulse-tube

    Spatial: This cooler, designed for Earth observation missions, is particularly well-suited to the needs of the most demanding applications, thanks to its compact size. In particular, it eliminates the need for complex “passive radiator cooling” architectures.

    The HFPTC is a compact cooler that can be used in terrestrial imaging to cool infrared detectors, particularly for civil and military security cameras, and for surveillance of strategic areas.

    Key Points

    Spatial: This cooler, designed for Earth observation missions, is particularly well-suited to the task thanks to its compact size. In particular, it eliminates the need for complex “passive radiator cooling” architectures.

    The HFPTC is a compact cooler that can be used in terrestrial imaging to cool infrared detectors, particularly for civil and military security cameras, and for surveillance of strategic areas.

    Key Points

  • HFPTC

    Miniaturized high-frequency Pulse-Tube

    LPT6510

    Miniaturized Pulse-Tube 75K to 150K

    HFPTC

    Miniaturized high-frequency Pulse-Tube

    LPT6510

    Miniaturized Pulse-Tube 75K to 150K

    LPT6510_pulse-tube-miniaturise-absolut-system

    The Pulse-Tube LPT6510 is a small, high-performance cryogenic cooler for operating temperatures between 60K and 150K.

    The result of a collaboration between Absolut System and Thalès Cryogenics B.V., the Pulse-Tube LPT6510 combines the MPTC compressor and the SSC80 pulsed gas tube developed by Absolut System.

    The LPT6510 offers excellent efficiency for 60-150K applications, proven reliability and reduced levels of exported vibration. Recent developments have enabled the Pulse-Tube to be upgraded to an “all-welded” design, increasing robustness and reliability by eliminating screwed interfaces.

    A specific version with a transfer line is also available.

    LPT6510_pulse-tube-miniaturise-absolut-system

    The LPT6510 is used in the TRISHNA high-resolution thermal infrared (TIR) space-time mission, led by the French (CNES) and Indian (ISRO) space agencies.

    Objectives: monitoring of water conditions and stress in continental ecosystems, monitoring of coastal waters, indoor monitoring of the urban environment. Applications to the solid Earth, cryosphere and atmosphere.

    Launch date: 2025

    Key Points

HFPTC: Miniaturized high-frequency Pulse-Tube

LPT6510: Pulse-Tube miniaturized 60 K à 150 K

  • HFPTC

    Miniaturized high-frequency Pulse-Tube

    LPT6510

    Miniaturized Pulse-Tube 75K to 150K

    HFPTC

    Miniaturized high-frequency Pulse-Tube

    LPT6510

    Miniaturized Pulse-Tube 75K to 150K

    hfptc_pulse-tube

    Absolut System has developed a miniaturized high-frequency Pulse-Tube for space and terrestrial applications between 75K and 150K.

    The HFPTC is a high-frequency Pulse-Tube based on our expertise in cryogenic cooler design for the space industry. Our engineering teams have developed a cooler with reduced dimensions and high performance. The HFPTC combines a Thalès Cryogenics B.V compressor with a cold finger developed by Absolut System.

    Unique on the market, this high-frequency Pulse-Tube is reliable and has a service life in excess of 10 years.

    hfptc_pulse-tube

    Spatial: This cooler, designed for Earth observation missions, is particularly well-suited to the needs of the most demanding applications, thanks to its compact size. In particular, it eliminates the need for complex “passive radiator cooling” architectures.

    The HFPTC is a compact cooler that can be used in terrestrial imaging to cool infrared detectors, particularly for civil and military security cameras, and for surveillance of strategic areas.

    Key Points

    Spatial: This cooler, designed for Earth observation missions, is particularly well-suited to the task thanks to its compact size. In particular, it eliminates the need for complex “passive radiator cooling” architectures.

    The HFPTC is a compact cooler that can be used in terrestrial imaging to cool infrared detectors, particularly for civil and military security cameras, and for surveillance of strategic areas.

    Key Points

  • HFPTC

    Miniaturized high-frequency Pulse-Tube

    LPT6510

    Miniaturized Pulse-Tube 75K to 150K

    HFPTC

    Miniaturized high-frequency Pulse-Tube

    LPT6510

    Miniaturized Pulse-Tube 75K to 150K

    LPT6510_pulse-tube-miniaturise-absolut-system

    The Pulse-Tube LPT6510 is a small, high-performance cryogenic cooler for operating temperatures between 60K and 150K.

    The result of a collaboration between Absolut System and Thalès Cryogenics B.V., the Pulse-Tube LPT6510 combines the MPTC compressor and the SSC80 pulsed gas tube developed by Absolut System.

    The LPT6510 offers excellent efficiency for 60-150K applications, proven reliability and reduced levels of exported vibration. Recent developments have enabled the Pulse-Tube to be upgraded to an “all-welded” design, increasing robustness and reliability by eliminating screwed interfaces.

    A specific version with a transfer line is also available.

    LPT6510_pulse-tube-miniaturise-absolut-system

    The LPT6510 is used in the TRISHNA high-resolution thermal infrared (TIR) space-time mission, led by the French (CNES) and Indian (ISRO) space agencies.

    Objectives: monitoring of water conditions and stress in continental ecosystems, monitoring of coastal waters, indoor monitoring of the urban environment. Applications to the solid Earth, cryosphere and atmosphere.

    Launch date: 2025

    Key Points

Technical datas

Technical datas

produits_ligne_20
produits_ligne_20
ProductsTechnical leaflets
HFPTC
LPT6510
ProductsRated powerDimensionsMassService lifeTechnical Leaflets
HFPTC1W @ 77K @ 20°C160 x 105 x 50mm 750g10 years
LPT65101.2W @ 57K @ -12°C225 x 180 x 70mm3kg10 years
Related product: CRYASSY

CRYASSY are compact cryogenic assemblies incorporating a detector, a cryostat and a Pulse-Tube cryogenic machine, also known as IDCA: Integrated Dewar Cooler Assembly.

Related project: ICCIR, new MINIATURIZED Pulse-Tubes

Absolut System, in partnership with Lynred and HGH, develops a long-life cooled optronics system: creation of a new generation of Pulse-Tube.
