Helium
management

Absolut System is the exclusive supplier of Cryomech helium recovery and liquefaction systems.

Absolut System is the exclusive supplier of Cryomech’s helium recovery and liquefaction systems, specially adapted to NMR cryomagnets, MRI systems, MEG, magnetic or physical property measurement systems…

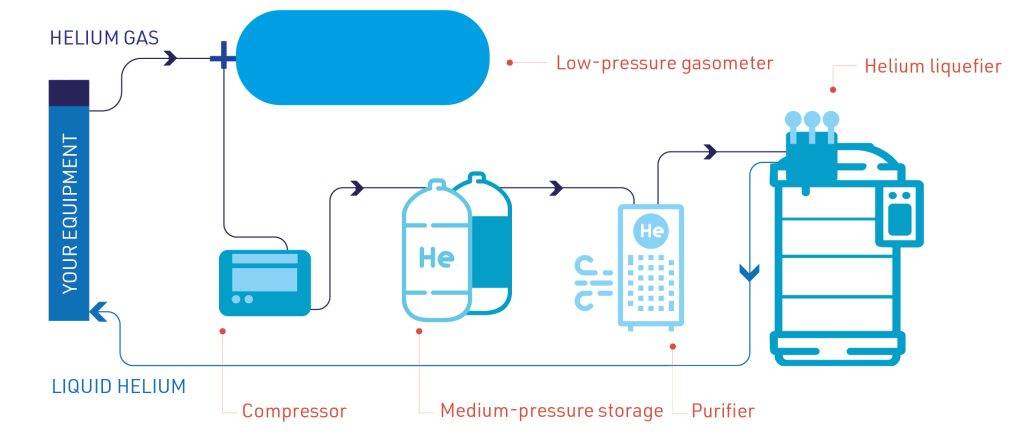

AS-schéma-management-hélium-EN

Helium
management

Absolut System is the exclusive supplier of Cryomech’s helium recovery and liquefaction systems, specially adapted to NMR cryomagnets, MRI systems, MEG, magnetic or physical property measurement systems…

AS-schéma-management-hélium-EN

Absolut System offers the largest selection of products for closed-loop helium management on a laboratory scale. Cryomech is a leading American manufacturer of high-quality products.

Helium recondenser - HeRL

Liquefaction rates from 10 to 60 liters per day
Zero boil-off solution (no evaporation loss)

Helium recondensers (HeRL) offer the possibility of transforming your open-cycle system into a closed-cycle, zero-loss (zero boil-off) system. HeRLs recondense helium vapors from the evaporation of liquid helium from cryostats.

ProductsLiquefaction rateRecondensation rateCold down time
HeRL10≥ 10L/day≥ 18L/day< 4 hours
HeRL15≥ 15L/day≥ 27L/day< 4 hours
HeRL20≥ 20L/day≥ 40L/day< 4 hours
HeRL40≥ 40L/dayto define< 4 hours
HeRL60≥ 60L/dayto define< 4 hours
Download the data sheet

Helium liquefier– LHeP

Liquefaction rates from 15 to 80 liters per day.
100% automatic control – remote monitoring.

Helium liquefiers (LHeP) employ Pulse-Tube cryocooler technology. They are designed for high reliability and long maintenance intervals.

ProductsLiquefaction rateStorage tankRequired flow rate: He gas
LHeP15≥ 15L/day60L7.3 SLPM*
LHeP22≥ 22L/day150L 10.7 SLPM
LHeP28≥ 20L/day150L 13.6 SLPM
LHeP55≥ 55L/day350L26.7 SLPM
LHeP80≥ 80L/day500L38.9 SLPM
Download the data sheet

Helium recondenser - HeRL

produits_ligne_30

Liquefaction rates from 10 to 60 liters per day
Zero boil-off solution (no evaporation loss)

Helium recondensers (HeRL) offer the possibility of transforming your open-cycle system into a closed-cycle, zero-loss (zero boil-off) system. HeRLs recondense helium vapors from the evaporation of liquid helium from cryostats.

Products *

Liquefaction rate
gas at 300K

Recondensation rate
cold steam

Cold down time
HeRL10≥ 10L/day≥ 18L/day< 4 hours
HeRL15≥ 15L/day≥ 27L/day< 4 hours
HeRL20≥ 20L/day≥ 40L/day< 4 hours
HeRL40≥ 40L/day to define< 4 hours
HeRL60≥ 60L/dayto define< 4 hours
Download the data sheet

* All HeRL models have an RM (Remote Motor) version.

Helium liquefier -
LHeP

produits_ligne_20

Liquefaction rates from 15 to 80 liters per day. 100% automatic control – remote monitoring

Helium liquefiers (LHeP) employ Pulse-Tube cryocooler technology. They are designed for high reliability and long maintenance intervals.



Products

Liquefaction rate
gas at 300K

Storage tanksRequired flow rate: He gas
LHeP15≥ 15L/day60L7.3 SLPM*
LHeP22≥ 22L/day150L 10.7 SLPM
LHeP28≥ 20L/day150L 13.6 SLPM
LHeP55≥ 55L/day350L26.7 SLPM
LHeP80≥ 80L/day500L38.9 SLPM
Download the data sheet

Helium recondenser - HeRL

Helium recondenser –
HeRL

produits_ligne_20
produits_ligne_30

Liquefaction rates from 10 to 60 liters per day
Zero boil-off solution (no evaporation loss)

Liquefaction rates from 10 to 60 liters per day
Zero boil-off solution (no evaporation loss)

Helium recondensers (HeRL) offer the possibility of transforming your open-cycle system into a closed-cycle, zero-loss (zero boil-off) system. HeRLs recondense helium vapors from the evaporation of liquid helium from cryostats.

Products*

Liquefaction rate
gas at 300K

Recondensation rate
cold steam

Cold down time
HeRL10≥ 10L/day≥ 18L/day< 4 hours
HeRL15≥ 15L/day≥ 27L/day< 4 hours
HeRL20≥ 20L/day≥ 40L/day < 4 hours
HeRL40≥ 40L/dayto define< 4 hours
HeRL60≥ 60L/dayto define< 4 hours

* All HeRL models have an RM (Remote Motor) version.

ProductsLiquefaction rateRecondensation rateCold down time
HeRL10≥ 10L/day≥ 18L/day< 4 hours
HeRL15≥ 15L/day ≥ 27L/day< 4 hours
HeRL20≥ 20L/day≥ 40L/day< 4 hours
HeRL40≥ 40L/dayto define< 4 hours
HeRL60≥ 60L/dayto define< 4 hours
Download the data sheet

Helium liquefactor – LHeP

produits_ligne_30

Helium Liquefactor –
LHeP

produits_ligne_20

Liquefaction rates from 15 to 80 liters per day. 100% automatic control – remote monitoring

Helium liquefiers (LHeP) employ Pulse-Tube cryocooler technology. They are designed for high reliability and long maintenance intervals.

Products

Liquefaction rate
gas at 300K

Storage tanksRequired flow rate: He gas
LHeP15≥ 15L/day60L7.3 SLPM*
LHeP22≥ 22L/day150L 10.7 SLPM
LHeP28≥ 20L/day150L 13.6 SLPM
LHeP55≥ 55L/day350L26.7 SLPM
LHeP80≥ 80L/day500L38.9 SLPM
Download the data sheet

Helium
purification

produits_ligne_20

Up to 99.9995% purification
Automatic & Cryogen-free (Pulse-Tube)

Contrairement aux épurateurs refroidis à l’azote liquide qui nécessitent un remplissage hebdomadaire et une régénération mensuelle du piège, l’épurateur automatique fonctionne et se régénère automatiquement sans aucune intervention de l’utilisateur.

Le système comprend un analyseur de gaz qui mesure la pureté de l’hélium en sortie de l’épurateur et déclenche un cycle de régénération avant que les contaminants ne puissent en sortir.

Compression
& storage

produits_ligne_20

Medium pressure

Absolut System offers systems based on robust, reliable two-stage scroll (or spiro-orbital) compression technology. They offer compression up to 27 bar for a flow rate of 212 SLPM (12.7 m3/h).

Helium recovery and management systems designed to fit your space and your needs. Absolut System can help you define your needs and design your complete helium recovery and liquefaction system.

Helium purification

produits_ligne_20

Up to 99.9995% purification
Automatic & Cryogen-free (Pulse-Tube)

Contrairement aux épurateurs refroidis à l’azote liquide qui nécessitent un remplissage hebdomadaire et une régénération mensuelle du piège, l’épurateur automatique fonctionne et se régénère automatiquement sans aucune intervention de l’utilisateur.

Le système comprend un analyseur de gaz qui mesure la pureté de l’hélium en sortie de l’épurateur et déclenche un cycle de régénération avant que les contaminants ne puissent en sortir.

Compression & storage

produits_ligne_30

Medium pressure

Absolut System offers systems based on robust, reliable two-stage scroll (or spiro-orbital) compression technology. They offer compression up to 27 bar for a flow rate of 212 SLPM (12.7 m3/h).

Helium recovery and management systems designed to fit your space and your needs. Absolut System can help you define your needs and design your complete helium recovery and liquefaction system.

Helium purification

Helium purification

souligner_bleu_mobile
produits_ligne_10
produits_ligne_20

Purification jusqu’à 99,9995%
Automatique & Sans cryogène (Pulse-Tube)

Unlike liquid nitrogen-cooled scrubbers, which require weekly refilling and monthly regeneration of the trap, the automatic scrubber operates and regenerates automatically without any user intervention.

The system includes a gas analyzer that measures the purity of the helium leaving the scrubber and triggers a regeneration cycle before contaminants can leave.

Compression & storage

Compression & storage

souligner_bleu_mobile
produits_ligne_30
produits_ligne_20

Medium pressure

Absolut System offers systems based on robust, reliable two-stage scroll (or spiro-orbital) compression technology. They offer compression up to 27 bar for a flow rate of 212 SLPM (12.7 m3/h).

Helium recovery and management systems designed to fit your space and your needs. Absolut System can help you define your needs and design your complete helium recovery and recirculation system.

Various installations carried out by Absolut System concerning LHeP and HeRL:

carte europe v2

LNE-CNAM, Metrology Laboratory

93210 La plaine Saint Denis – LHeP18

ESPCI, Laboratory of Physics and Study of Materials

10, rue Vauquelin 75231 Paris cedex 05 – LHeP18

Synchrotron SOLEIL

L’Orme des Merisiers 91192 Gif sur Yvette – LHeP60

C2N, Nanoscience and Nanotechnology Center

10, bd Thomas Gobert 91120 Palaiseau – LHeP55

CNRS, Kastler Brossel Laboratory

Université P.M. Curie, 4, place Jussieu 75005 Paris – HeRL15

ESPCI, Laboratory of Physics and Study of Materials

10, rue Vauquelin 75231 Paris cedex 05 – HeRL15

Ecole Polytechnique, Irradiated Solids Laboratory

route de Saclay 91128 Palaiseau – HeRL15

GEMAC, Condensed Matter Study Group, Université Versailles

45, avenue des Etats-Unis 78035 Versailles – HeRL15

ICMMO

Université Paris-Sud 11, rue George Poitou 91405 Orsay – HeRL10

ICMPE, Institute of Chemistry and Materials

Université Paris Est Créteil Val de Marne (UPEC), 8 rue Henri Dunant 94320 Thiais – HeRL10

CEA

Orme des Merisiers 91191 Gif Sur Yvette – HeRL10 + CPA2861

LNE-CNAM, Joint Metrology Laboratory

93210 La plaine Saint Denis – LHeP18

ESPCI, Laboratory of Physics and Study of Materials

10, rue Vauquelin 75231 Paris cedex 05 – LHeP18

Synchrotron SOLEIL

L’Orme des Merisiers 91192 Gif sur Yvette – LHeP60

Nanoscience and Nanotechnology Center, C2N

10, boulevard Thomas Gobert 91120 Palaiseau – LHeP55

Laboratory Kastler Brossel, CNRS

Université P.M. Curie, 4, place Jussieu 75005 Paris – HeRL15

ESPI, Laboratory of Physics and Study of Materials

10, rue Vauquelin 75231 Paris cedex 05 – HeRL15

Ecole Polytechnique, Irradiated Solids Laboratory

route de saclay 91128 Palaiseau – HeRL15

GEMAC, Condensed Matter Study Group, Université Versailles

45, avenue des Etats-Unis 78035 Versailles – HeRL15

ICMMO

Université Paris-Sud, 11, rue George Poitou 91405 Orsay – HeRL10

ICMPE, Institute of Chemistry and Materials

Université Paris Est Créteil Val de Marne (UPEC), 8, rue Henri Dunant 94320 Thiais – HeRL10

CEA

Orme des Merisiers 91191 Gif Sur Yvette – HeRL10 + CPA286i

KIT, Karlsruhe Institute of Technology

Kaiserstrasse 12 D-76131 Karlsruhe – LHep40

Hambourg-Eppendorf University

Martinistrasse 52 D-20246 Hamburg – LHep22

LNCMI, National Laboratory for Intense Magnetic Fields

143, av. de Rangueil 31400 Toulouse – LHep55

CERMEP

59, bd Pinel 69677 Bron – LHep22

CFM, Centro de Fisica de Materiales

Paseo manuel de larbizabal, 5-E, 20018 Donostia San Sebastian – LHep40

CEA

17, rue des martyrs 38054 Grenoble cedex 9 – HeRL10

LNCMI, National Laboratory for Intense Magnetic Fields

25, av. des martyrs 38000 Grenoble – HeRL15

IPCMS, Strasbourg Institute of Physics and Chemistry of Materials

23, rue du Loess 67034 Strasbourg – HeRL15

CRPP, Centre de Recherche Paul Pascal

115, av. Albert Schweitzer 33600 Pessac – HeRL10

IM2NP

52, av. escadrille normandie niemen 13397 Marseille – HeRL10

PMB-ALCEN

route des michels, 13790 Peynier – HeRL10

CNRS, Rennes Institute of Chemical Sciences

Université de Rennes, av. du général Leclerc 35042 Rennes – HeRL10 + HeRL15

Materials Physics Group

Université de Rouen Normandie, avenue de l’université 76801 Saint Etienne du Rouvray – HeRL10

EPFL, Ecole Polytechnique Fédérale de Lausanne

Route Cantonale, 1015 Lausanne, Suisse – HeRL15-RM

IMCN, Institute of Condensed Matter and Nanosciences

Université Catholique de Louvain, 2, chemin du cyclotron BE-1348 Louvain la Neuve – HeRL15-RM

carte europe

LNE-CNAM, Metrology Laboratory

93210 La plaine Saint Denis – LHeP18

ESPCI, Laboratory of Physics and Study of Materials

10, rue Vauquelin 75231 Paris cedex 05 – LHeP18

Synchrotron SOLEIL

L’Orme des Merisiers 91192 Gif sur Yvette – LHeP60

C2N, Nanoscience and Nanotechnology Center

10, bd Thomas Gobert 91120 Palaiseau – LHeP55

CNRS, Kastler Brossel Laboratory

Université P.M. Curie, 4, place Jussieu 75005 Paris – HeRL15

ESPCI, Laboratory of Physics and Study of Materials

10, rue Vauquelin 75231 Paris cedex 05 – HeRL15

Ecole Polytechnique, Irradiated Solids Laboratory

route de Saclay 91128 Palaiseau – HeRL15

GEMAC, Condensed Matter Study Group, Université Versailles

45, avenue des Etats-Unis 78035 Versailles – HeRL15

ICMMO

Université Paris-Sud 11, rue George Poitou 91405 Orsay – HeRL10

ICMPE, Institute of Chemistry and Materials

Université Paris Est Créteil Val de Marne (UPEC), 8 rue Henri Dunant 94320 Thiais – HeRL10

CEA

Orme des Merisiers 91191 Gif Sur Yvette – HeRL10 + CPA2861

LNE-CNAM, Joint Metrology Laboratory

93210 La plaine Saint Denis – LHeP18

ESPCI, Laboratory of Physics and Study of Materials

10, rue Vauquelin 75231 Paris cedex 05 – LHeP18

Synchrotron SOLEIL

L’Orme des Merisiers 91192 Gif sur Yvette – LHeP60

Nanoscience and Nanotechnology Center, C2N

10, boulevard Thomas Gobert 91120 Palaiseau – LHeP55

Laboratory Kastler Brossel, CNRS

Université P.M. Curie, 4, place Jussieu 75005 Paris – HeRL15

ESPI, Laboratory of Physics and Study of Materials

10, rue Vauquelin 75231 Paris cedex 05 – HeRL15

Ecole Polytechnique, Irradiated Solids Laboratory

route de saclay 91128 Palaiseau – HeRL15

GEMAC, Condensed Matter Study Group, Université Versailles

45, avenue des Etats-Unis 78035 Versailles – HeRL15

ICMMO

Université Paris-Sud, 11, rue George Poitou 91405 Orsay – HeRL10

ICMPE, Institute of Chemistry and Materials

Université Paris Est Créteil Val de Marne (UPEC), 8, rue Henri Dunant 94320 Thiais – HeRL10

CEA

Orme des Merisiers 91191 Gif Sur Yvette – HeRL10 + CPA286i

KIT, Karlsruhe Institute of Technology

Kaiserstrasse 12 D-76131 Karlsruhe – LHep40

Hambourg-Eppendorf University

Martinistrasse 52 D-20246 Hamburg – LHep22

LNCMI, National Laboratory for Intense Magnetic Fields

143, av. de Rangueil 31400 Toulouse – LHep55

CERMEP

59, bd Pinel 69677 Bron – LHep22

CFM, Centro de Fisica de Materiales

Paseo manuel de larbizabal, 5-E, 20018 Donostia San Sebastian – LHep40

CEA

17, rue des martyrs 38054 Grenoble cedex 9 – HeRL10

LNCMI, National Laboratory for Intense Magnetic Fields

25, av. des martyrs 38000 Grenoble – HeRL15

IPCMS, Strasbourg Institute of Physics and Chemistry of Materials

23, rue du Loess 67034 Strasbourg – HeRL15

CRPP, Centre de Recherche Paul Pascal

115, av. Albert Schweitzer 33600 Pessac – HeRL10

IM2NP

52, av. escadrille normandie niemen 13397 Marseille – HeRL10

PMB-ALCEN

route des michels, 13790 Peynier – HeRL10

CNRS, Rennes Institute of Chemical Sciences

Université de Rennes, av. du général Leclerc 35042 Rennes – HeRL10 + HeRL15

Materials Physics Group

Université de Rouen Normandie, avenue de l’université 76801 Saint Etienne du Rouvray – HeRL10

EPFL, Ecole Polytechnique Fédérale de Lausanne

Route Cantonale, 1015 Lausanne, Suisse – HeRL15-RM

IMCN, Institute of Condensed Matter and Nanosciences

Université Catholique de Louvain, 2, chemin du cyclotron BE-1348 Louvain la Neuve – HeRL15-RM

Related project:: Cryogenics for neuroimaging

Absolut System a installé et mis en service un système d’hélium liquide en boucle fermée pour les besoins du système de magnétoencéphalographie de la plateforme de neuroimagerie du CERMEP de Lyon-Bron.

More +
Related project: Cryogenics for neuroimaging

Absolut System installed and commissioned a closed-loop liquid helium system for the magnetoencephalography system at the CERMEP neuroimaging platform in Lyon-Bron.

More +

Our products

Our products

cryassy_produit_trait_produits_bleu
produits_ligne_10

Absolut System celebrates its 14th anniversary!
