Liquid hydrogen range

Liquid hydrogen range

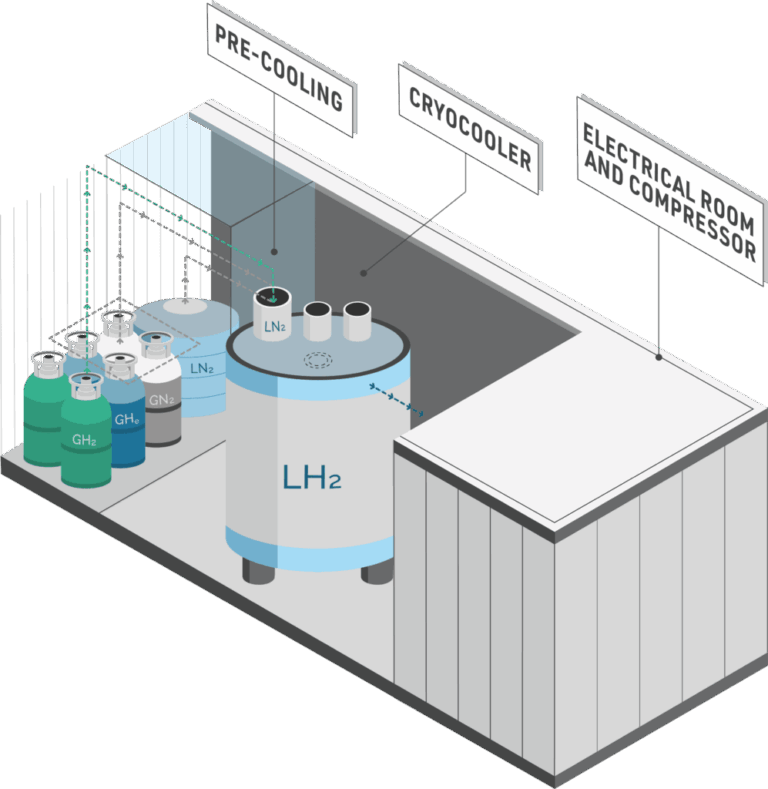

LIQHYD50 from 11 to 48KG/day

Ideal for prototype testing and small-scale installations.

Description

  • Maximum space requirement of 15 m².
  • lug&Play system: ease of use, electrical and application connections.
  • Integrated expansion panel.
  • Liquefaction cryostat with liquid nitrogen pre-cooling.
  • Remote control.
  • Electrical backup for safety requirements.
  • Vacuum pumping unit.

Options

  • LH2 storage tank.
  • Transfer line between the microliquefier and the storage tank.
  • LH2 purity analyser at the liquefier outlet.
  • Equipment maintenance.
  • Possible in a container (transportable, compact, outdoor, etc.).

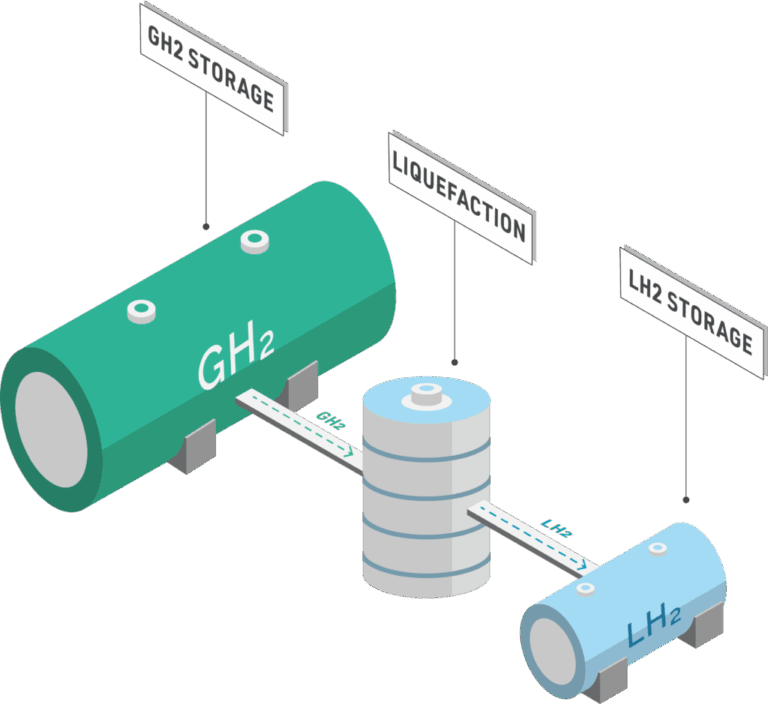

LIQHYD100 100KG/day

Ideal for transport platforms and demonstrators, and adapts to logistical constraints.

Description

  • Maximum space requirement of 20 m².
  • Removable skid.
  • Plug&Play system: ease of use, electrical and application connections.
  • Pre-cooling by LN2.
  • Production between 30 % and 100 %.
  • Reverse Turbo Brayton cycle with turbomachinery developed by Absolut System.

Options

  • LH2 storage tank.
  • Transfer line between the liquefier and the storage tank.
  • LH2 purity analyser at the liquefier outlet.
  • Equipment maintenance.

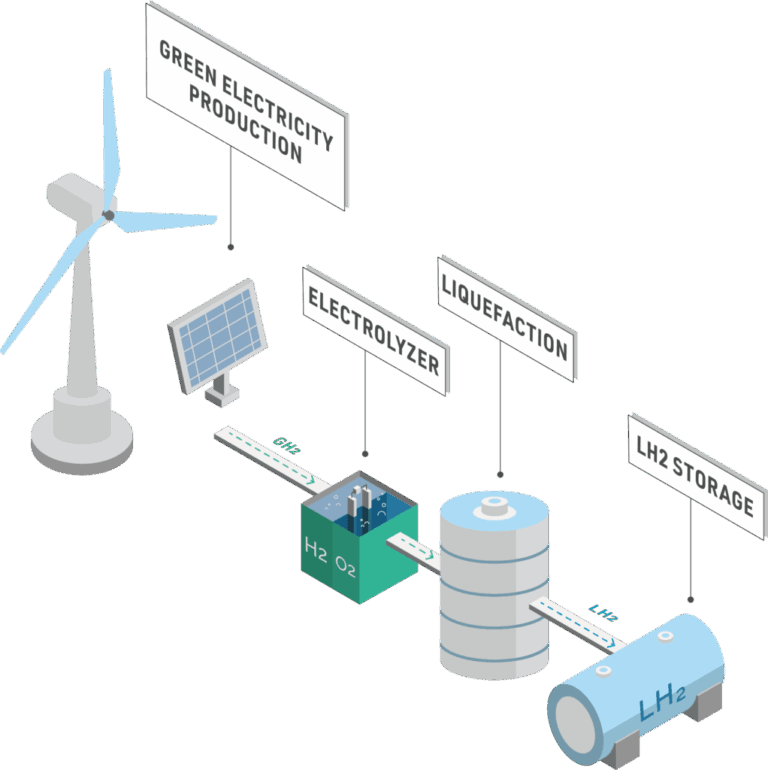

LIQHYD1000 1T/day

Decentralised access to energy for on-site storage and production: energy on demand.

Description

  • A local liquefier solution suitable for airfields, logistics hubs and captive fleets.
  • Suitable for 2.5 to 5 MW electrolyzer.
  • Production between 30 % and 100 %.
  • Specific electrical consumption (SEC) between 8-12 kWh/kg.
Absolut System develops a range of technological solutions to suit your needs: liquefaction, storage, energy transport, reliquefaction…
Liquid hydrogen will enable us to move towards more sustainable energy transport and an emission-free mobility sector.

Access to liquid hydrogen:

  • Offers greater autonomy
  • Improves storage density for infrastructures
  • Facilitates hydrogen transport
  • Liquid hydrogen enables storage facilities to be filled rapidly
